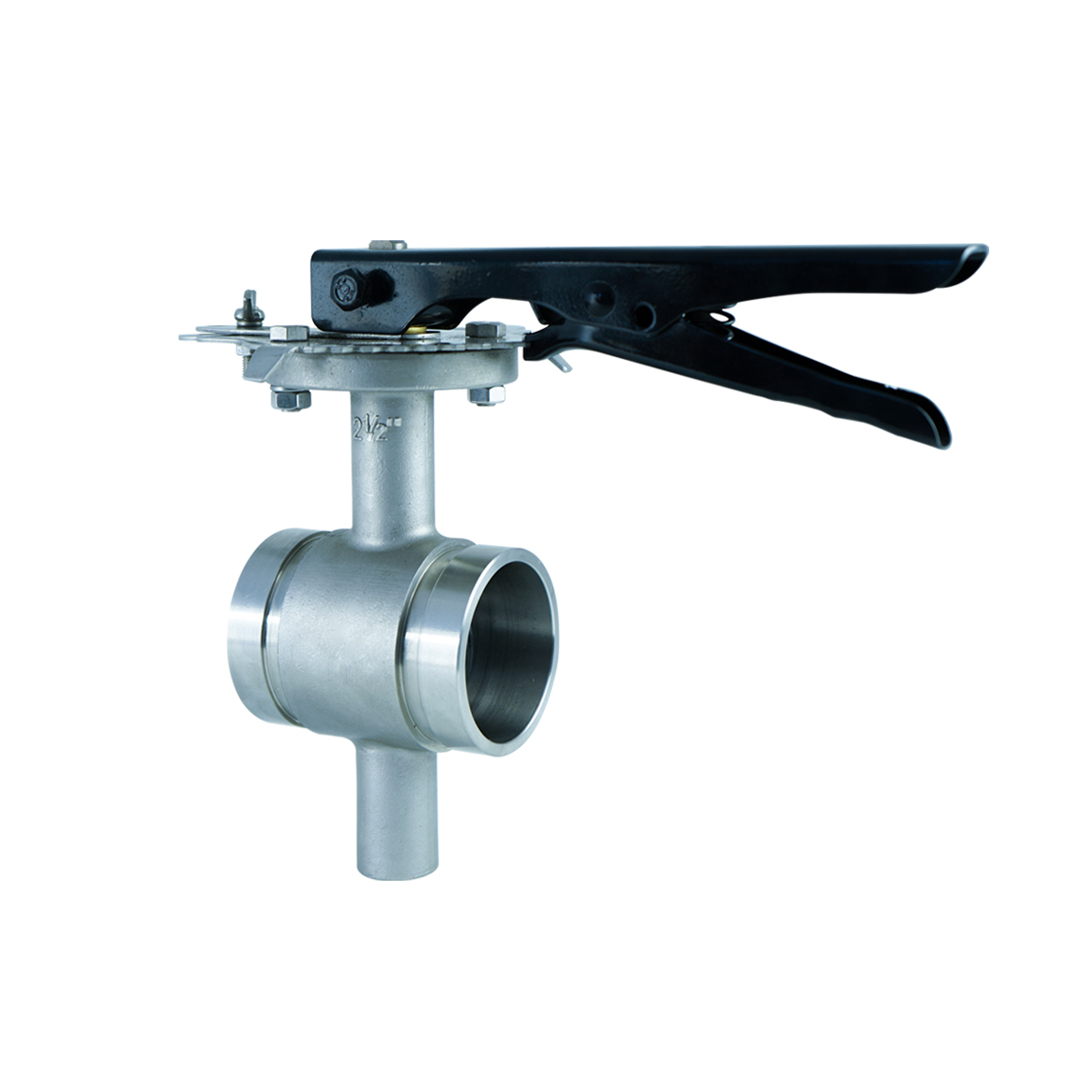

9200LG Lever 316 Stainless BFV
Connections : Grooved Ends (AWWA C606)
Sizes : 2”, 2-1/2”, 3”, 4”, 5” ,6”, 8”
Maximum Working Pressure : 300PSI (Max. Test Pressure: 600PSI)
Maximum Working Temperature : 230°F (110°C)
Application : Indoor and Outdoor Use
10-Position Epoxy-Coated Lever Handle with Memory Stop
- Options : 316 SS Lever-Handle, Gear Operator
MATERIAL SPECIFICATION
Components | Material | Specification |
---|---|---|
Body | 316SS | 316 (CF8M) Stainless Stee |
Disc | Ductile Iron | Ductile Iron, EPDM or NBR Encapsulated |
Stem | Stainless Steel | AISI 410 Stainless Steel |
Stem Seals | EPDM | |
ISO Mounting Pad | Stainless Steel | 4-Hole, ISO |
Throttling Plate | Steel, Zinc-Plated | |
Lever Handle | Carbon Steel | Epoxy Coated |
Gear-Op. Housing | Coated Steel | Epoxy Coated |
Handwheel | Ductile Iron | ASTM A536 |
Worm Shaft | Stainless Steel | AISI 410 |
Shear Pin | Steel | ASTM A510 |
Gear Segment | Brass | ASTM B584 |
Housing Gasket | EPDM | EPDM Grade E |
