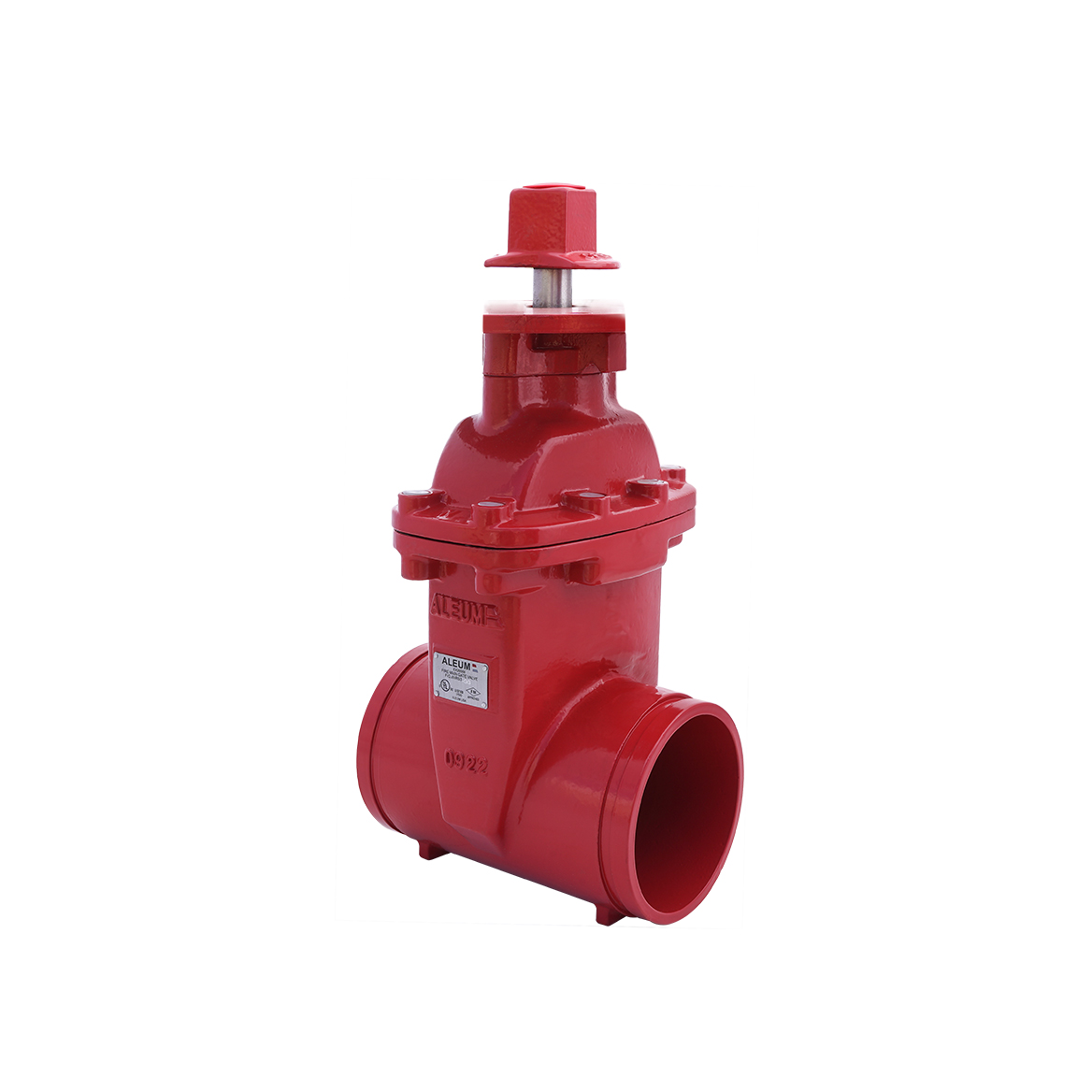

ANRS-GG NRS Grooved Gate Valve
Connections : Grooved Ends (AWWA C606)
Sizes : 2-1/2”, 3”, 4”, 5”, 6”, 8”, 10”, 12”
Approvals : UL, ULC, FM
Maximum Working Pressure : 300 PSI (Max. Test Pressure: 600PSI)
Maximum Working Temperature : 180°F (82°C)
Complies with AWWA C515
Fusion Bonded Epoxy Coated Interior and Exterior to AWWA C550

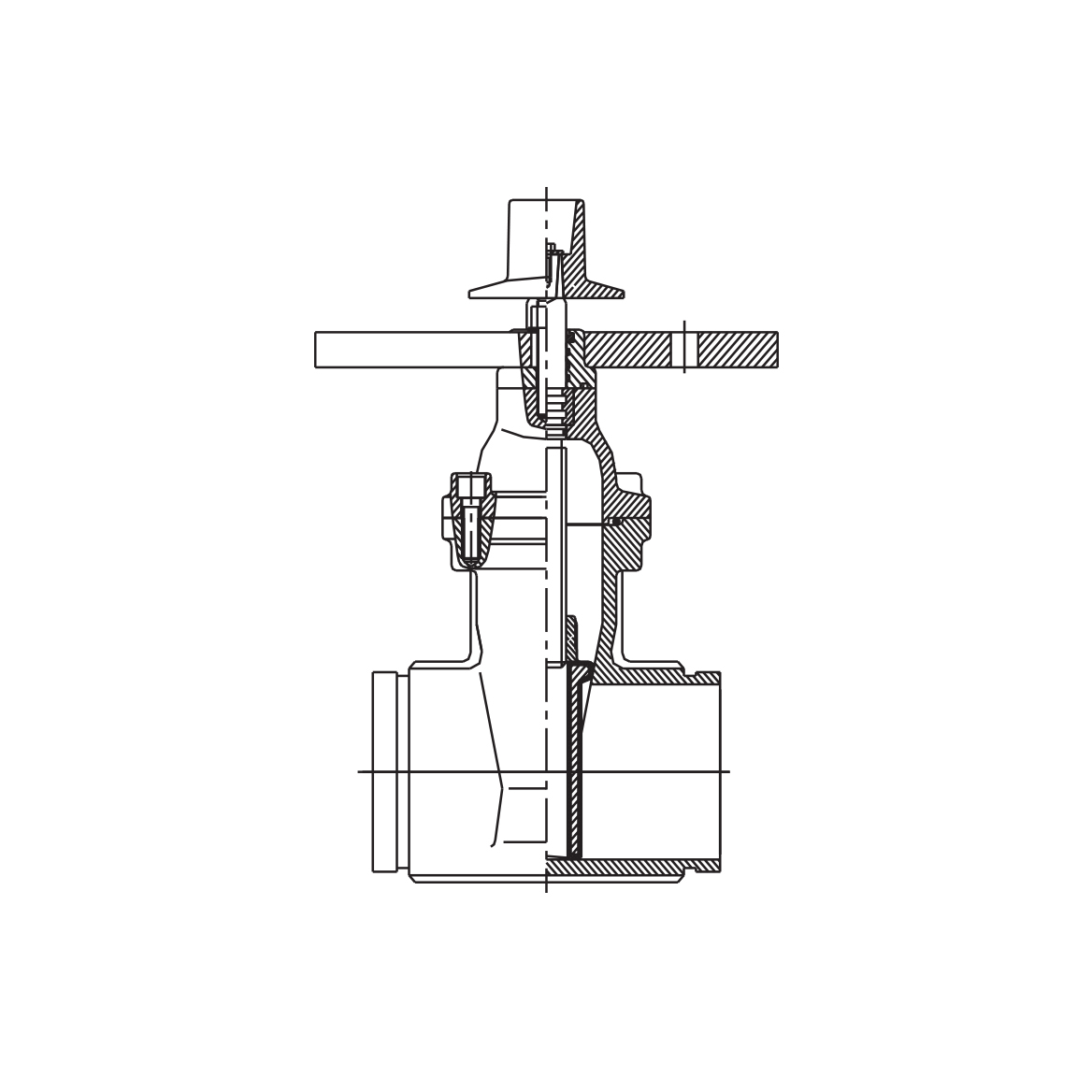

MATERIAL SPECIFICATION
| Components | Material | Specification |
|---|---|---|
| Body | Ductile Iron | A536 65-45-12 |
| Wedge | Ductile Iron | EPDM Encapsulated |
| Wedge Nut | Bronze | B62 C83600 |
| Stem | Stainless Steel | ANSI 420 |
| Bonnet | Ductile Iron | A536 65-45-12 |
| Gasket | Rubber | EDPM |
| Gland | Ductile Iron | A536 65-45-12 |
| Thrust Collar | Bronze | B62 C83600 |
| O-Ring | Rubber | EPDM |
| Post Flange | Ductile Iron | A536 65-45-12 |
| Operating Nut | Ductile Iron | A536 65-45-12 |
| NPT Plug | Malleable Iron | Commercial |
| Post Flange Bolt | Stainless Steel | AISI 316 |
| Bonnet Bolt | Stainless Steel | AISI 304 |
