Home > Products > Butterfly Valves UL/FM > LBTS

LBTS Ductile Lug

  • Connections : Lug Style Wafer Ends (ASME B16.1 Class 125)

  • Sizes : 2-1/2″, 3″, 4″, 6″, 8″

  • Approvals : UL, ULC, FM

  • Maximum Working Pressure : 300PSI (Max. Test Pressure: 600PSI)

  • Maximum Working Temperature : 176°F (80°C)

  • Complies with AWWA C550

  • Fusion Bonded Epoxy Coated Interior and Exterior to AWWA C550

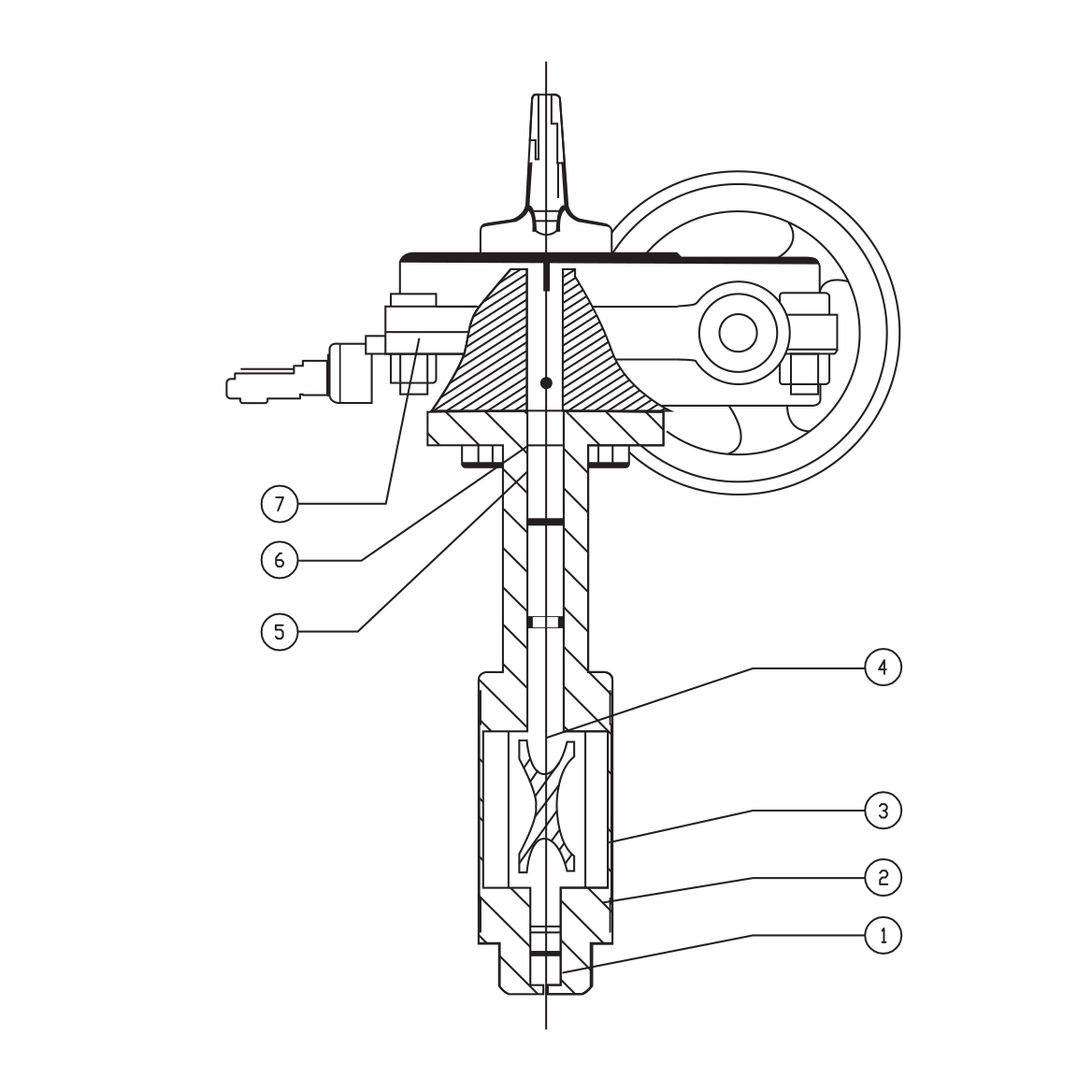

MATERIAL SPECIFICATION
No. Components Material Specification
1 Body Ductile Iron ASTM A536
2 Seat EPDM EPDM Grade E
3 Disc Ductile Iron ASTM A536 EPDM Encapsulated
4 Stem Stainless Steel AISI 410
5 O-ring (All) EPDM EPDM Grade E
6 Bushing Polytetrafluoroethylene PTFE
7 Housing Ductile Iron ASTM A536
